Tank Blanketing Systems

Tank Blanketing Systems
Tank Blanketing Systems
Product Code : TBS 20
Product Description

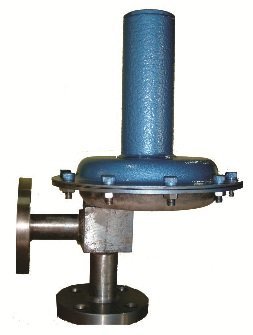

Tank Blanketing System

REGPORT offers complete tank blanketing system, which is designed for continuous blanketing and safeguarding the tank for over-pressure as well as for under-pressure. This also includes an Emergency Vent Valve designed for fire case if the stored media is like a hydrocarbon.

Major Components

  •   Low Pressure Blanketing Regulator
  •   Pressure Vacuum Relief Valve (Breather Valve)
  •   Flame Arrestor
  •   Emergency Relief Valve
  •   Nitrogen Pressure Reducing Station from cylinder / generation plant

System Design :               As per API 2000 guidelines

Type                      :               Pressure Sensitive Devices

Operation           :               All components “ Self Actuated / Dead Weight

Body MOC          :               CS “ WCB/A105  /  AISI 304/CF8  /  AISI 316/CF8M & Others on request

Trim MOC            :               AISI 304 / AISI 316 / Monel / HasalloyC & other on request
